The Applications of the General Expression Transformer

March 17, 2025 By Stuart P. Atkinson

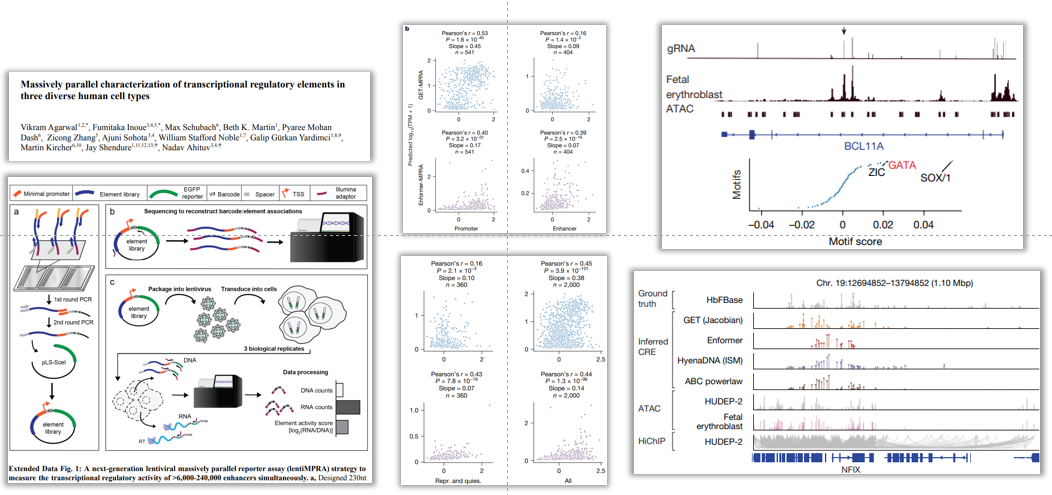

Multi-panel figure showing MPRA experiemnt, results, and predicted enhancer/promoter interactions — Next-generation lentiMPRA workflow. Barcoded enhancer libraries are cloned into lentiviral vectors, mapped by paired-end sequencing, packaged and transduced into cells, and quantified by RNA/DNA sequencing to measure activity of ~20,000–240,000 elements in parallel. From Fu, Mo, and Buendia et al.

The Applications of the General Expression Transformer

In the first part of this blog series, Epigenome Technologies offered a brief overview of the development of GET - general expression transformer Nature study from researchers led by Xi Fu, Raul Rabadan (Columbia University), and Eric P. Xing (MBZUAI/Carnegie Mellon University) (Fu, Mo, and Buendia et al.).

We previously noted that understanding relationships between the chromatin landscape and transcription remained challenging, as most approaches employ separate epigenetic and transcriptomic assays performed in distinct cell samples that require the reintegration of diverse datasets, which may reduce robustness. Parallel analysis of individual cells for RNA expression and DNA from targeted tagmentation by sequencing or " Paired-Tag Epigenome Technologies generates joint epigenetic and gene expression profiles at single-cell resolution and detects histone modifications and RNA transcripts in individual nuclei with an efficiency similar to single-nucleus RNA-seq/ChIP-seq assays. Paired-tag technology enables researchers to advance their understanding of transcriptional regulation and improve disease management.

In this second part of this series, Epigenome Technologies summarizes the applications of GET: predicting regulatory activity and recognizing regulatory elements/physical interactions between transcription factors (TFs) supports the identification of unreported distal regulatory regions in erythroblasts and a TF-TF interaction in B cells that explain the significance of a leukemia-associated germline mutation risk and the construction of a TF/coactivator interaction catalog.

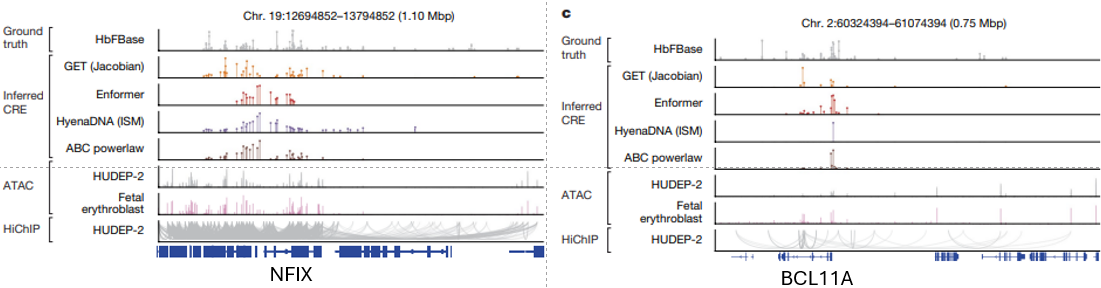

Multi-panel figure demonstrating cCRE inference from various methods — Comparative CRE inference at NFIX and BCL11A loci. Genome browser tracks show HiChIP-defined loops (ground truth), ATAC accessibility in HUDEP-2 and fetal erythroblasts, and predicted regulatory element activity from GET (Jacobian), Enformer, HyenaDNA (ISM), and ABC power-law methods over 1.1 Mb (chr19) and 0.75 Mb (chr2). From Fu, Mo, and Buendia et al.

Investigating Fetal Hemoglobin-Regulating Loci

The team employed genome-base-editing data from fetal erythroblasts to investigate fetal hemoglobin-regulating loci (BCL11A, NFIX, KLF1, and HBG2) (Cheng et al.) to demonstrate the identification of cis-regulatory elements by GET

They confirmed the role of GATA TFs (regulate fetal hemoglobin by orchestrating BCL11A expression via an erythroid-specific enhancer) and highlighted an undescribed role for SOX TFs in regulating fetal hemoglobin (by binding to the same enhancer)
GET outperformed established models when examining fetal hemoglobin-regulating loci, especially when detecting long-range enhancer-promoter interactions

GET identified the most important TF motifs across cis-regulatory elements for HBG2, BCL11A, and NFIX

Results agreed with known transcriptional regulators/hematopoietic TFs (NFY and SOX motifs for HBG2 and KLF1 for BCL11A7) and revealed an unknown association between TAL1 (a GATA1 binding partner/hematopoietic factor) and NFIX

GET identified downstream targets for specific regulators, such as GATA

Genes influenced by the GATA motif associated with hemopoiesis (agrees with GATA1's role in erythroid development), with known erythroid-lineage TFs predicted to be regulated by the GATA motif

GET identified TF-TF interactions based on the high correlation between motifs, which aided the identification of known and unknown motifmotif interactions to a better degree than other similar approaches

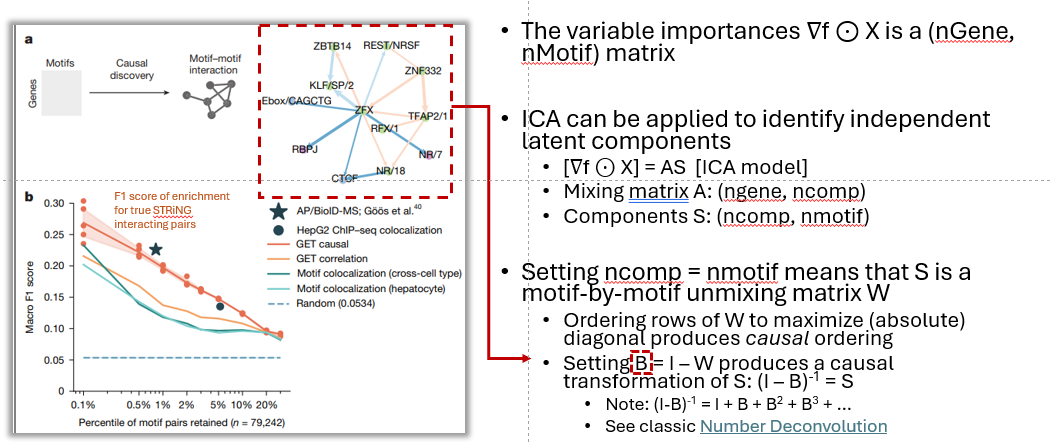

Multi-panel figure describing how TF inference works and showing causal predictoin curves — Causal transcription-factor network recovery. (a) ICA-derived motif–motif interaction graph highlighting key TF pairs. (b) Macro F₁-score curves for GET causal predictions versus motif-colocalization and random baseline, benchmarked against AP/BioID-MS and HepG2 ChIP-seq, as a function of retained motif-pair percentile. From Fu, Mo, and Buendia et al.

Building a Structural Catalog of the Human Transcription Factor Interactome

The team employed AlphaFold2 and a network of causal motif interactions predicted by GET to generate a structural catalog of the human TF interactome

They categorized interactions as direct (homodimers and intra/inter-family heterodimers) and cofactor-mediated (cooperative/competitive binding) and acquired structure predictions for over 1,700 known human TFs, discovering that AlphaFold captured dimer structures and detected intrafamily heterodimers

They identified structural interactions via AlphaFold2 based on predicted TF-TF interactions to explore the folding of disordered regions after partner binding

Electrostatic interactions drove the folding of the ZFX intrinsically disordered region into a multimeric structure when paired with TFAP2A structured domains
Known motifs of ZFX and TFAP2A share a core, and coimmunoprecipitation experiments revealed an interaction between these TFs
Their analysis predicted an interaction between SNAI1 and RELA1 via electrostatic interactions of specific domains with the EP300 cofactor

This success drove the authors to include a broader range of TF interactions predicted by GET

A focus on the top 5% of predicted interactions in each cell type provided 1,718 TF pairs and the comprehensive structural cataloging of TF interactions

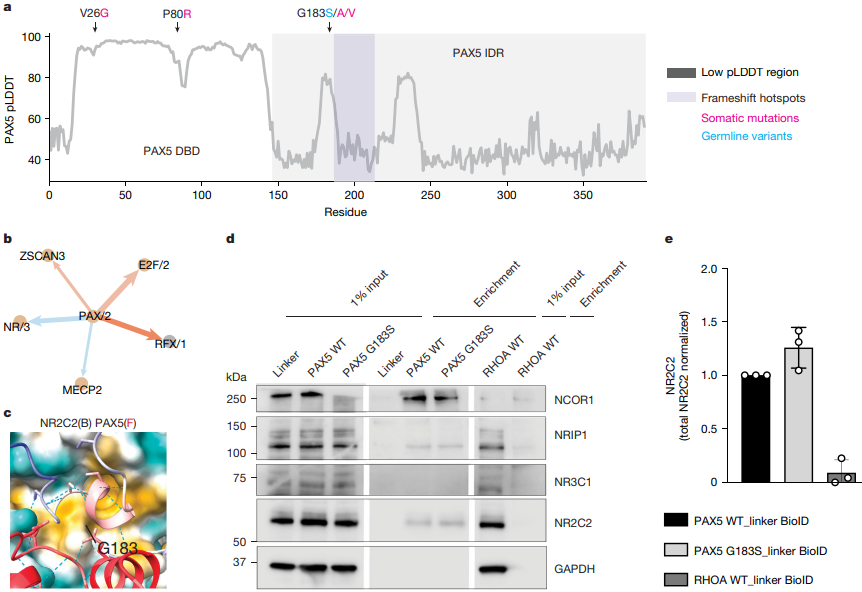

Multi-panel figure showing folding prediction of PAX5 IDR mutations, network interactions, and co-IP — PAX5 IDR mutation and interaction analysis. (a) Per-residue pLDDT profile of PAX5 showing low-confidence regions and mutational hotspots (V26G, P80R, G183S). (b) BioID network of PAX5 interactors enriched in the low-confidence IDR. (c) Structural model of the PAX5 F domain with G183S highlighted. (d–e) Co-immunoprecipitation and quantification of NR2C2 binding to wild-type versus G183S PAX5. From Fu, Mo, and Buendia et al.

TFTF Co‐binding Prediction: A Closer Look

GET helps to infer TFTF interactions by analyzing variable importance, with the element-wise product ∇f ⊙ X representing motif embedding

∇f denotes the gene expression prediction gradient concerning each input feature, and X represents the corresponding TF motif binding scores and chromatin accessibility levels
The product reflects the presence of a TF binding signal and its relative impact on gene expression prediction

Each profile encapsulates the influence of a particular TF's binding event on model output

GET effectively deciphers which TFs drive expression in each cellular context
High matrix values suggest that subtle differences in TF binding have outsized effects on transcriptional output

A high correlation between the patterns of different TFs emerges when aggregating importance scores across many genes, hinting at potential co-binding interactions
Independent component analysis to the ∇f ⊙ X matrix isolates latent components representing groups of TFs with shared binding patterns, capturing the essence of TF-TF co-binding modules and reflecting known (e.g., cooperative binding of GATA factors with TAL1 in hematopoiesis) and unreported interactions
Combinatorial binding patterns drive the coordinated regulation of gene expression, suggesting the physical co-occupancy of TFs as a critical determinant of transcriptional outcomes

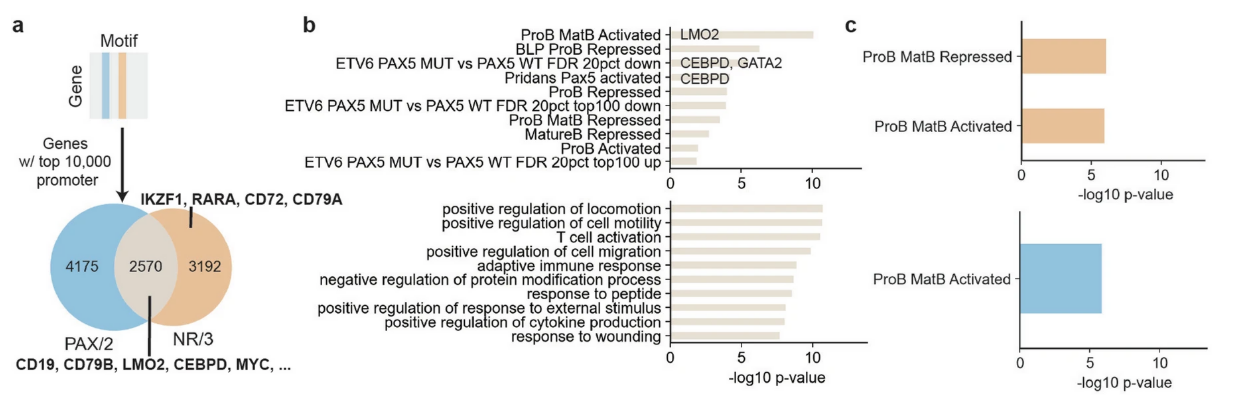

Multi-panel figure showing motif enrichments and overlaps — Promoter motif enrichment and gene‐set analysis. (a) Venn diagram of genes with top 10,000 promoters containing PAX2 or NR/3 motifs, listing select lineage markers. (b) Bar plots of TF perturbation signature enrichment (e.g., ETV6–PAX5 MUT vs. WT) and GO terms for genes downregulated in mutant vs. wild-type. (c) Enrichment of ProB/MatB‐activated and -repressed gene sets (–log₁₀ p-value).

A Focus on PAX5 and the Functional Role of Mutations

Demonstrating the utility of the catalog focused on PAX5, which drives the development of B cell precursor acute lymphoblastic leukemia (B-ALL) (Shah et al.) (linked to somatic genetic alteration affecting PAX5 (Escudero et al.))

The functional role of the G183S mutation affecting the PAX5 intrinsically disordered region (a recurrent familial germline mutation conferring elevated B-ALL risk; Auer et al.) remained elusive

Exploring PAX5 interaction pairs in fetal B lymphocytes identified interactions with various motifs

Analysis revealed and confirmed a novel interaction between NR/3 TFs and PAX5 involving the G183 residue and identified a PAX5 and NR2C2 interaction as affected by the G183S mutation
An examination of the top 10,000 promoters predicted to be most influenced by PAX/2 and NR/3 motifs sought to determine whether these motifs coregulated genes
The analysis identified 2,570 commonly regulated genes, including oncogenes implicated in B-ALL and genes involved in lymphocyte activation and affected by PAX5 perturbation during B cell differentiation
Analysis of sporadic childhood B-ALL samples identified a G183S mutation-associated transcriptional program
Genes in this program displayed enrichment in NR/3- and PAX5 + NR/3-regulated genes, suggesting the relevance of the PAX5NR interaction, and genes activated in ProB cells

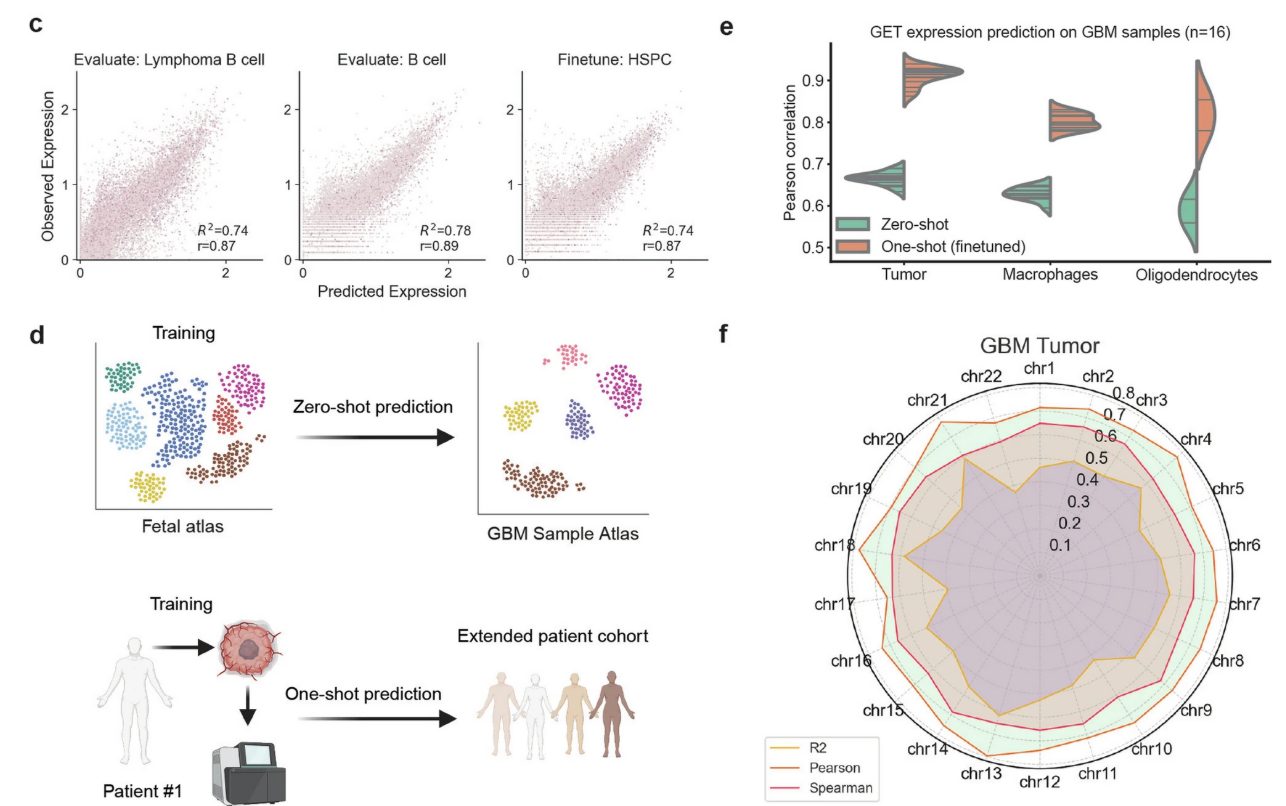

Multi-panel figure showing model predictions with no training and one-shot training — Zero- and one-shot GET expression predictions across diverse human samples. (a–c) Scatterplots of predicted vs. observed log-expression in lymphoma B cells, normal B cells, and HSPCs (R², r shown). (d) Schematic of zero-shot GET mapping from fetal atlas to GBM samples. (e) Violin plots of Pearson’s r in GBM tumors, macrophages, and oligodendrocytes. (f) Radar plot of per-chromosome R², Pearson, and Spearman performance in GBM tumors.

The Applications for the General Expression Transformer - The Highlights

Overall, the authors report exciting examples of the potential outcomes of applying GET, but what's next? The authors note that future enhancements to GET may include the integration of additional biological information (e.g., 3D chromatin architecture and single-cell data) and the incorporation of more cell states and a broader range of assays (e.g., TF binding and histone modification profiles) to further improve model outcomes. They also note the potential for GET in predicting the functional impact of non-coding genetic variants, which may provide further insight into disease susceptibility and perhaps support the development of novel therapeutics. Moving forward, single-cell datasets provided by Paired-tag an analytical platform that creates joint epigenetic and gene expression profiles at single-cell resolution and detects histone modifications and RNA transcripts in individual nuclei - may support the development of related studies and exciting new tools. The Bing Ren lab developed Paired-tag, and Epigenome Technologies offers optimized Paired-Tag kits and services to researchers in the epigenetics field under an exclusive license from the Ludwig Institute for Cancer Research.

See Nature (January 2025) for more on the application of GET, and stay tuned to Twitter, Bluesky, and LinkedIn to keep up to date with all the new epigenetics studies; furthermore, check out our Products and Services pages to see how Epigenome Technologies can elevate your research today.
